Supporting Module Types

IntelliJ Platform provides a set of standard module types. However, an application might need a module of a type that isn’t supported yet. This tutorial shows how to register a new module type and link it to the project creation procedure and the UI.

Pre-requirements

Create an empty plugin project, see Creating a Plugin Project.

1. Register a New Module Type

Add a new com.intellij.moduleType implementation with the IntelliJ Platform in the plugin.xml configuration file.

<extensions defaultExtensionNs="com.intellij"> <moduleType id="DEMO_MODULE_TYPE" implementationClass="org.intellij.sdk.module.DemoModuleType"/> </extensions>

2. Implement ModuleType Interface

Create the DemoModuleType implementation based on ModuleType.

// Copyright 2000-2020 JetBrains s.r.o. and other contributors. Use of this source code is governed by the Apache 2.0 license that can be found in the LICENSE file. package org.intellij.sdk.module; import com.intellij.ide.util.projectWizard.ModuleWizardStep; import com.intellij.ide.util.projectWizard.WizardContext; import com.intellij.openapi.module.ModuleType; import com.intellij.openapi.module.ModuleTypeManager; import com.intellij.openapi.roots.ui.configuration.ModulesProvider; import icons.SdkIcons; import org.jetbrains.annotations.NotNull; import javax.swing.*; public class DemoModuleType extends ModuleType<DemoModuleBuilder> { private static final String ID = "DEMO_MODULE_TYPE"; public DemoModuleType() { super(ID); } public static DemoModuleType getInstance() { return (DemoModuleType) ModuleTypeManager.getInstance().findByID(ID); } @NotNull @Override public DemoModuleBuilder createModuleBuilder() { return new DemoModuleBuilder(); } @NotNull @Override public String getName() { return "SDK Module Type"; } @NotNull @Override public String getDescription() { return "Example custom module type"; } @NotNull @Override public Icon getNodeIcon(@Deprecated boolean b) { return SdkIcons.Sdk_default_icon; } @NotNull @Override public ModuleWizardStep[] createWizardSteps(@NotNull WizardContext wizardContext, @NotNull DemoModuleBuilder moduleBuilder, @NotNull ModulesProvider modulesProvider) { return super.createWizardSteps(wizardContext, moduleBuilder, modulesProvider); } }

3. Implement Custom Module Builder

Create DemoModuleBuilder based on ModuleBuilder.

// Copyright 2000-2020 JetBrains s.r.o. and other contributors. Use of this source code is governed by the Apache 2.0 license that can be found in the LICENSE file. package org.intellij.sdk.module; import com.intellij.ide.util.projectWizard.*; import com.intellij.openapi.Disposable; import com.intellij.openapi.module.ModuleType; import com.intellij.openapi.options.ConfigurationException; import com.intellij.openapi.roots.ModifiableRootModel; import org.jetbrains.annotations.NotNull; import org.jetbrains.annotations.Nullable; public class DemoModuleBuilder extends ModuleBuilder { @Override public void setupRootModel(@NotNull ModifiableRootModel model) throws ConfigurationException { } @Override public ModuleType getModuleType() { return DemoModuleType.getInstance(); } @Nullable @Override public ModuleWizardStep getCustomOptionsStep(WizardContext context, Disposable parentDisposable) { return new DemoModuleWizardStep(); } }

4. Provide Custom Wizard Steps

Provide a straightforward implementation of UI components for the project creating stage. Create a generic DemoModuleWizardStep based on ModuleWizardStep

// Copyright 2000-2020 JetBrains s.r.o. and other contributors. Use of this source code is governed by the Apache 2.0 license that can be found in the LICENSE file. package org.intellij.sdk.module; import com.intellij.ide.util.projectWizard.ModuleWizardStep; import javax.swing.*; public class DemoModuleWizardStep extends ModuleWizardStep { @Override public JComponent getComponent() { return new JLabel("Provide some setting here"); } @Override public void updateDataModel() { //todo update model according to UI } }

5. Creating a Module of New Type

After compiling and running the plugin in a development instance, create a new project. Select File | New | Module… A new module type and its settings panel are available in the Project Wizard.

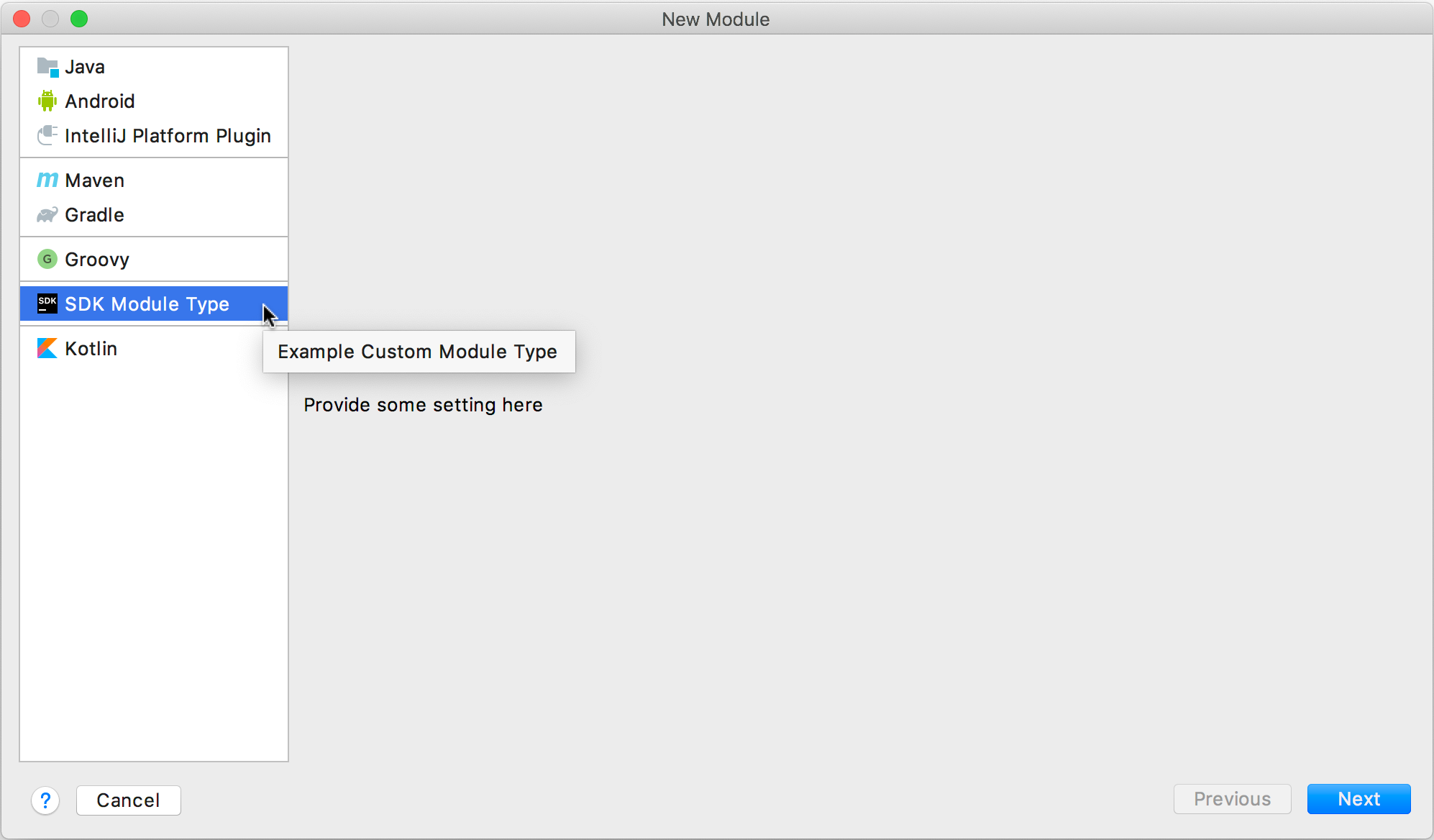

New Module Type

Last modified: 19 February 2020
